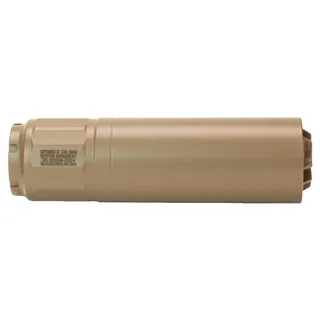

Griffin ArmamentOptimus 6
6mm / 6.5mm suppressor · HUB 1.375x24 interface · specs and compatibility from the manufacturer
Notable features
- HUB Compatible
- Low Backpressure
- Full-Auto Rated
- Sealed
length
6″
weight
15.2oz
MSRP
$600
length
6″
weight
15.2oz
calibers
5.56 | 6.5
material
Steel · Inconel
interface
HUB 1.375x24
MSRP
$600
- Overall length
- 6″
- Diameter
- 1.73″
- Weight
- 15.2 oz
- Class
- 6mm / 6.5mm
- n
- 98
- Range
- 4.4 oz–23.9 oz
- Median
- 12.45 oz
- Material
- 17-4 H900 Stainless Steel, 718 Inconel
- Finish / treatment
- High-Temp Cerakote
- Max caliber
- 6mm / .223
- Base interface
- HUB 1.375x24
- Front cap
- Griffin Revolution Front Cap
- Backpressure
- Low
- Full-auto rated
- Yes
- Maintenance
- Sealed (not user serviceable)
- MSRP
- $600
- Class
- 6mm / 6.5mm
- n
- 86
- Range
- $260–$1,529
- Median
- $975
Heavier than most 6mm / 6.5mm suppressors
Weight compared against the 98 6mm / 6.5mm suppressors in the catalog that publish one. Quartile basis; a value inside the middle half carries no note.
Cheaper than most 6mm / 6.5mm suppressors
MSRP compared against the 86 6mm / 6.5mm suppressors in the catalog that publish one. Quartile basis; a value inside the middle half carries no note.
Prices are manufacturer's suggested retail (MSRP). What you pay may differ.
- Base interface
- HUB 1.375x24
- Front cap
- Griffin Revolution Front Cap
The HUB 1.375x24 is an open standard: 415 mounts and 818 muzzle devices in our catalog fit this suppressor, including Griffin Armament A2 HUB Mount Adapter (1.375×24), AAC 51T S.T.A.M.P. Mount and AB Suppressor AB Raptor Adapter. You aren't locked into one manufacturer's parts.
Which ones fit your barrel and host?
Check in the BuilderManufacturer claim
- Rated at -22.2 dB, measuring 137.0 dB on an 11.5″ Griffin MK2 using 55 gr M193 ammunition.
- dB rating: -22.15dB (137.0dB on 11.5″ Griffin MK2 5.56mm).
- dB rating: -22.15dB (137.0dB on 11.5" Griffin MK2 5.56mm).
- The Optimus 6 uses an additive manufactured (3D printed) high-flow baffle design specifically engineered to reduce system backpressure over traditional suppressors while maintaining flash and sound reduction.
Show all 16 ▾ ▴
- The quad-tine flash hider endcap was tuned in conjunction with the low backpressure baffle stack to achieve flash reduction described as almost unseen in other low backpressure suppressors on the market.
- The tube body of the printed core is machined during post-production to create a smooth exterior absent of the printing layers typically visible on other additively manufactured suppressors.
- The blast shield and mount system are machined in-house from 17-4 stainless steel and laser-welded to the baffle core.
- Available in three mounting variants: Taper Mount, DUAL-LOK®, and Utility Mount (HUB 1.375×24 TPI), with user's choice of black or FDE high-temp Cerakote finish.
- User serviceable: No.
- The suppressor is constructed entirely from 17-4 H900 stainless steel, described as ultra-strong, for both the printed baffle core and machined components.
- The Optimus 6 is Full Auto Rated and covered under Griffin's Perpetual Lifetime Warranty™.
- The laser-welded blast shield and mount system design is intended to allow easy warranty service in the case of a baffle strike or other catastrophic failure.
- The Optimus 6 is optimized for 5.56mm platforms with high-performance capability on 6mm projectiles, and features a 6mm bore.
- Suppressor type: Low Backpressure , Rifle , Tactical.
- An EZ-Brake™ (.22 cal – 1/2×28) is included with DUAL-LOK® and Taper Mount models; Utility Mount (HUB) models do not include a muzzle device or HUB insert, which must be purchased separately.
- Utility Mount (HUB) variants of the Optimus 6 do not come with a muzzle device or HUB insert; muzzle devices and mount interfaces must be purchased separately.
