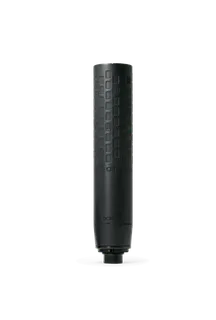

EOTECHDCBL 762
.30 Cal / 7.62mm suppressor · HUB 1.375x24 interface · specs and compatibility from the manufacturer
Notable features
- HUB Compatible
- Low Backpressure
- Sealed
length
8″
weight
17.4oz
MSRP
$1,099
length
8″
weight
17.4oz
calibers
5.56–.30
material
Titanium
interface
HUB 1.375x24
MSRP
$1,099
- Overall length
- 8″
- Diameter
- 1.75″
- Weight
- 17.4 oz
- Class
- .30 Cal / 7.62mm
- n
- 513
- Range
- 4.4 oz–39.8 oz
- Median
- 13.75 oz
- Material
- Grade 5 Titanium
- Finish / treatment
- High-Temp Cerakote
- Max caliber
- .300 PRC
- Base interface
- HUB 1.375x24
- Front cap
- Fixed
- Backpressure
- Low
- Full-auto rated
- No
- Barrel restriction
- 10.3" minimum
- Maintenance
- Sealed (not user serviceable)
- MSRP
- $1,099
Heavier than most .30 Cal / 7.62mm suppressors
medianTHIS SUPPRESSOR · 17.4 oz
4.4 oz39.8 oz
Weight compared against the 513 .30 Cal / 7.62mm suppressors in the catalog that publish one. Quartile basis; a value inside the middle half carries no note.
Prices are manufacturer's suggested retail (MSRP). What you pay may differ.
- Base interface
- HUB 1.375x24
- Front cap
- Fixed
The HUB 1.375x24 is an open standard: 415 mounts and 818 muzzle devices in our catalog fit this suppressor, including AAC 51T S.T.A.M.P. Mount, AB Suppressor AB Raptor Adapter and Abel Co Direct Thread Adapter 1/2x28. You aren't locked into one manufacturer's parts.
Which ones fit your barrel and host?
Check in the BuilderManufacturer claim
- EOTECH lists the DCBL 762 as Not Rated for full auto, and its warranty excludes damage related to full-auto firing.
- EOTECH publishes a dB rating of 132.3 for the DCBL 762.
- EOTECH publishes both a suppressor-body figure and a with-hub-and-flash-hider figure because the industry follows no standard: some makers publish the body weight alone and leave out components that are required to use the suppressor.
- EOTECH's Vent-Forward design vents gas forward, away from the shooter, which it says cuts back pressure and the blowback of gas and fumes into the shooter's face on semi-automatic hosts, for smoother cycling and less carbon buildup.
Show all 16 ▾ ▴
- 3D printing lets EOTECH build internal baffle geometry that could not be machined conventionally, which it credits for the sound reduction, the lower weight and the improved gas flow.
- The DCBL 762 uses the industry-standard HUB thread pitch of 1.375"-24. EOTECH states that any HUB adapter, including other companies', will mate with it.
- EOTECH publishes a bore diameter of 0.39" and an overall diameter of 1.75" (44.5 mm) for the DCBL 762, with a published maximum cartridge of .300 PRC.
- Per the DCBL manual, the hub threads onto the suppressor body counter-clockwise and torques to roughly 35 ft/lbs with an armorer's tool; the KFM flash hider goes on the barrel at roughly 30 ft/lbs and the suppressor tightens onto it hand-tight, roughly 20 ft/lbs. The KFM adapter uses reverse threads, so removal turns clockwise.
- The DCBL 762 is a monolithic Grade 5 titanium body 3D printed from titanium powder, treated with a high-temp Cerakote finish and offered in matte black or tan.
- Residual titanium powder from the 3D-printing process makes a new DCBL spark on the first rounds fired; EOTECH says this drops off sharply after roughly 200 rounds and is a harmless byproduct of the material.
- EOTECH covers the DCBL line with its NoBS Lifetime Warranty: it will repair or replace any issue related to materials and workmanship free of charge, for the original registered owner.
- EOTECH says the monolithic, corrosion-resistant construction is built for harsh environments including salt air, extreme temperatures and prolonged courses of fire, and that the greater mass acts as a heat sink while thicker walls resist warping and erosion.
- The DCBL manual states the suppressors are manufactured in the USA and licensed by EOTECH for sale within the USA only.
- EOTECH considers its rifle suppressors self-cleaning under the high pressure of firing; it recommends inspection for wear and an ultrasonic cleaning every 2,500-3,000 rounds rather than routine user cleaning.
- The DCBL 762 ships with a hub and a KFM flash hider. EOTECH publishes the suppressor body at 8" (203.2 mm) / 17.4 oz (492 g) and the assembled suppressor with hub and flash hider at 8.8" (223.6 mm) / 22.8 oz (647 g).
- EOTECH publishes a minimum barrel length of 10.3" for the DCBL 762.
