EOTECHDCBL 556
5.56mm / .223 suppressor · HUB 1.375x24 interface · specs and compatibility from the manufacturer
Notable features
- HUB Compatible
- Low Backpressure
- TBAC Summit Tested
- Sealed
Where to buy
Prices update nightly
Guns.com
Shop links go to retailer sites; we may earn a commission. Prices shown as of our last check and may differ at checkout.
length
7.1″
weight
13.7oz
MSRP
$1,099
length
7.1″
weight
13.7oz
calibers
5.56
material
Titanium
interface
HUB 1.375x24
MSRP
$1,099
Photos

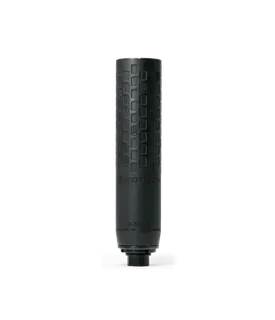

Image: EOTECH
- Overall length
- 7.1″
- Class
- 5.56mm / .223
- n
- 373
- Range
- 2.5″–9.75″
- Median
- 6.2″
- Diameter
- 1.75″
- Class
- 5.56mm / .223
- n
- 359
- Range
- 1″–2.2″
- Median
- 1.6″
- Weight
- 13.7 oz
- Material
- Grade 5 Titanium
- Finish / treatment
- High-Temp Cerakote
- Max caliber
- .22 Creedmoor
- Base interface
- HUB 1.375x24
- Front cap
- Fixed
- Backpressure
- Low
- Full-auto rated
- No
- Barrel restriction
- 10.3" minimum
- EOTECH publishes a minimum barrel length of 10.3" for the DCBL 556.
- Maintenance
- Sealed (not user serviceable)
- MSRP
- $1,099
- Class
- 5.56mm / .223
- n
- 325
- Range
- $199–$1,955
- Median
- $900
Longer than most 5.56mm / .223 suppressors
Length compared against the 373 5.56mm / .223 suppressors in the catalog that publish one. Quartile basis; a value inside the middle half carries no note.
Wider than most 5.56mm / .223 suppressors
Diameter compared against the 359 5.56mm / .223 suppressors in the catalog that publish one. Quartile basis; a value inside the middle half carries no note.
Pricier than most 5.56mm / .223 suppressors
MSRP compared against the 325 5.56mm / .223 suppressors in the catalog that publish one. Quartile basis; a value inside the middle half carries no note.
Prices are manufacturer's suggested retail (MSRP). What you pay may differ.
- Base interface
- HUB 1.375x24
- Front cap
- Fixed
The HUB 1.375x24 is an open standard: 489 mounts and 934 muzzle devices in our catalog fit this suppressor, including AAC 51T S.T.A.M.P. Mount, AB Suppressor AB Raptor Adapter and Abel Co Direct Thread Adapter 1/2x28. You aren't locked into one manufacturer's parts.
Which ones fit your barrel and host?
Check in the BuilderThe Thunder Beast Silencer Summit fires every suppressor entered on the same gun, with the same equipment. DCBL 556 was measured in 1 test. Figures can only be compared with others from the same test, so each one links to everything else fired on that gun.
Gas-operated rifles and carbines
Measurements published by Thunder Beast Arms Corp. How to read these
Manufacturer claim
- EOTECH lists the DCBL 556 as Not Rated for full auto, and its warranty excludes damage related to full-auto firing.
- EOTECH publishes a dB rating of 133.6 for the DCBL 556.
- EOTECH publishes both a suppressor-body figure and a with-hub-and-flash-hider figure because the industry follows no standard: some makers publish the body weight alone and leave out components that are required to use the suppressor.
- EOTECH's Vent-Forward design vents gas forward, away from the shooter, which it says cuts back pressure and the blowback of gas and fumes into the shooter's face on semi-automatic hosts, for smoother cycling and less carbon buildup.
Show all 16 ▾ ▴
- 3D printing lets EOTECH build internal baffle geometry that could not be machined conventionally, which it credits for the sound reduction, the lower weight and the improved gas flow.
- The DCBL 556 uses the industry-standard HUB thread pitch of 1.375"-24. EOTECH states that any HUB adapter, including other companies', will mate with it.
- EOTECH publishes a bore diameter of 0.283" and an overall diameter of 1.75" (44.5 mm) for the DCBL 556, with a published maximum cartridge of .22 Creedmoor.
- Per the DCBL manual, the hub threads onto the suppressor body counter-clockwise and torques to roughly 35 ft/lbs with an armorer's tool; the KFM flash hider goes on the barrel at roughly 30 ft/lbs and the suppressor tightens onto it hand-tight, roughly 20 ft/lbs. The KFM adapter uses reverse threads, so removal turns clockwise.
- The DCBL 556 is a monolithic Grade 5 titanium body 3D printed from titanium powder, treated with a high-temp Cerakote finish and offered in matte black or tan.
- Residual titanium powder from the 3D-printing process makes a new DCBL spark on the first rounds fired; EOTECH says this drops off sharply after roughly 200 rounds and is a harmless byproduct of the material.
- EOTECH covers the DCBL line with its NoBS Lifetime Warranty: it will repair or replace any issue related to materials and workmanship free of charge, for the original registered owner.
- EOTECH says the monolithic, corrosion-resistant construction is built for harsh environments including salt air, extreme temperatures and prolonged courses of fire, and that the greater mass acts as a heat sink while thicker walls resist warping and erosion.
- The DCBL manual states the suppressors are manufactured in the USA and licensed by EOTECH for sale within the USA only.
- EOTECH considers its rifle suppressors self-cleaning under the high pressure of firing; it recommends inspection for wear and an ultrasonic cleaning every 2,500-3,000 rounds rather than routine user cleaning.
- The DCBL 556 ships with a hub and a KFM flash hider. EOTECH publishes the suppressor body at 7.1" (180.4 mm) / 13.7 oz (387 g) and the assembled suppressor with hub and flash hider at 7.9" (200.7 mm) / 19.6 oz (554 g).
- EOTECH publishes a minimum barrel length of 10.3" for the DCBL 556.
